用处与简价/Brief Introduction：

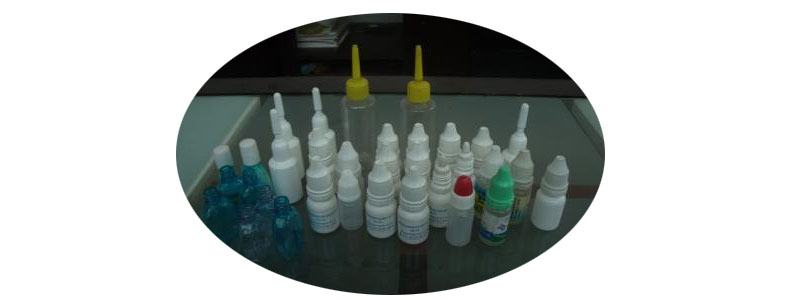

超声波焊接机常应用在2-30ML几种金属材质的弧形扁形塑料件或玻璃钢瓶的眼蓝药水包装、自动化烟油等小使用量包装.超声波焊接机由高正确凸轮轴组织 度数组织 保证度数等分盘位置导航定位上塞上盖;加快度凸轮轴组织 传动系统齿轮保证旋盖头的上下;恒功率旋盖;胃排空泵剂量包装;触碰屏调控.无瓶不包装,不加以内塞,外盖.具位置导航定位正确,传动系统齿轮市场平稳,呵护酒盖,剂量准.操控简单化等优点和缺点。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

的特点/Characteristic：

◆微电脑主机快速设置、装量正确、操作步骤更方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆服务器电机转速可展开无极变速直流变频空调控速。the mainframe running speed is stepless frequency conversion.◆加工量系统自动酶联免疫法管控。the product quantity can be controlled. ◆四种故章提示信息系统(如低标准气压。无灌装线、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自然欠费用途，对任意道轨诞生累计无装灌、无内塞事情可自然欠费。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技术应用叁数/Main Technical Parameters：

用于尺寸Filling Volume	2-30ml
出产值力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装精密度较Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
全自动上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
功效 Power	2.0 kw
丝机重量Weight	550 kg
外表规格尺寸Dimension	1800*1000*1500mm
