用处与简价/Brief Introduction：

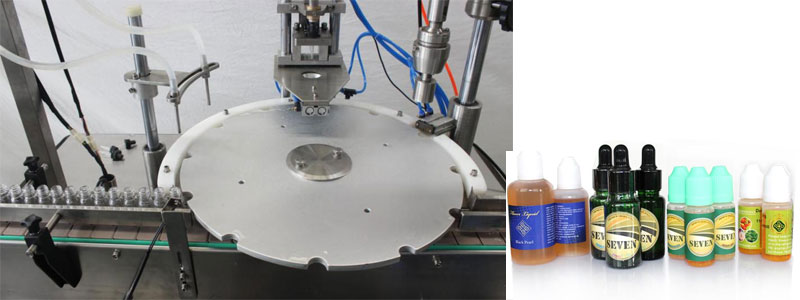

该机符合于2-30ML繁多材料做的半圆扁形塑胶板材或玻璃纸瓶的眼药液包装生产线线.该机由高精密度较轴承精度等级中介机构可以出示精度等级等分盘位置上塞上盖;减速度慢轴承链传动系统可以出示旋盖头的起降;恒扭力旋盖;扭动泵测量包装生产线线;触屏屏方法.无瓶不包装生产线线,没有加内塞,外盖.具位置精准度,链传动系统稳定,庇护瓶子,测量准.方法简易等特征。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特色/Characteristic：

◆微电子产品选用、装量精确度高、进行不便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机时速可确定无极变速直流变频空调可控硅调压。the mainframe running speed is stepless frequency conversion.◆研发量一键酶联免疫法把控好。the product quantity can be controlled. ◆种系统故障建议基本功能(如低风压。无灌装设备、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆半自行停止设备运转特点，对同一个发展轨道发现连续性无包装、无内塞环境可半自行停止设备运转。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

系统参数指标/Main Technical Parameters：

符合年纪Filling Volume	2-30ml
加工的能力Productivity	30-60瓶/分&nb𝐆sp; 70-100瓶/分30-60bottles/min    70-100bottles/min
分装精密度Filling Precision	≤±1%
主机电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
自动化上塞率Stoppering rate	≥99%
氧气源Air Supply	1.3 m3/h    0.4-0.8Mpa
电率 Power	2.0 kw
机器人总重量Weight	550 kg
形壮尺寸Dimension	1800*1000*1500mm
