使用与简单：/Purpose and introduction

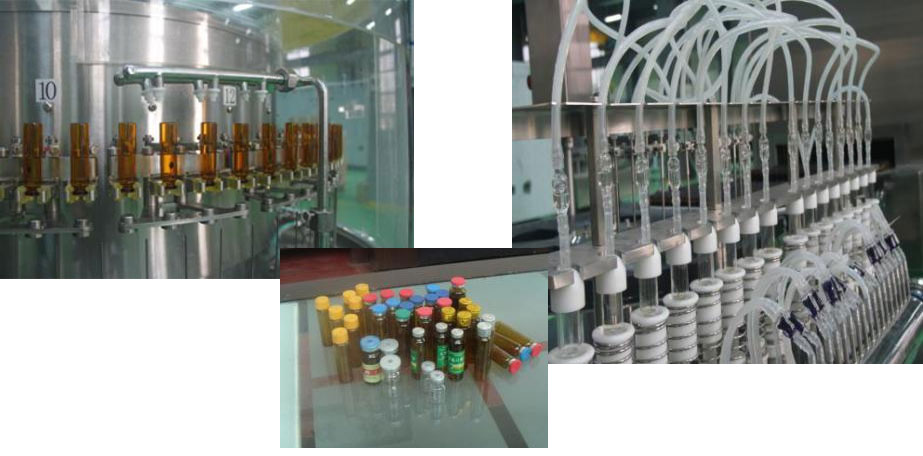

液体液洗烘灌轧协同性线由卧式超音波波洗瓶机、队道式自动空调 间歇消毒处理干燥箱、液体液装罐轧盖机等构成，是和于 5-30ml 等多种规 格液体液瓶的分娩。可成功完成对进口药品分娩中安瓿瓶淋水、超音波波清洁、冲水、充 气、烤干消毒处理、放置冷却、装罐、轧盖等工艺流程步驟的协同性运动。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

特征:/characteristic

◆洗瓶机运用自动化手夹瓶，适宜多种不同标准的瓶里；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶用水汽喷针回转追综嵌入方案，刷洗郊果好，降低能源系统。并要设针架防颤抖设施，增进喷针嵌入空瓶的精准度，下降断针问题会出现；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶一小部分气水聚氨酯保温管、喷针基本独特单独，以免 了是交叉生态破坏，非常符合GMP正确让；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶罗杆前安装响应块，有确保罗杆，增多碎瓶用Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶进行纵向进品同步操作带，连接方式拨块运送冲剂液，开机运行稳定性靠普In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆烘干箱采取红外线供暖管，不锈钢圆管供暖管多层供暖工作温度竖直性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机可选装配陶瓷厂家泵、冷库保温隔热板的表层泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆装灌无瓶止灌，无瓶不轧盖效果。Pieces filling without bottle filling, no bottle no rolling function.◆整线适用PLC总操纵、调频器、触控屏操纵技能，进行维持信得过。触控屏可显视各pc单机的进行状态下下，各操纵点的通水压力、空气压力、传热系数、温差等显视，各旋转开关状态下下和报警显视，报警自我价值确诊和报警研究及检测的方法。使整一个工作方式满足全自动化系统操纵，联线体现了三机自我控制平衡点裝置，维持工作匀衡信得过。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.给出的客户的必须，还可供加装：According to the needs of customers, but also available for selection:◆PLC、德力西、三凌、台达等公司设定机系统；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气重压、水溫及多普勒彩超波力度、颗粒物a粒子、风压高清在线测试、警报、备案、打印机系统性。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌隔離器系统。Mixer ORABS, CRABS, aseptic isolator system.

技巧参数设置：technical parameters

采用技术参数Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
包装精密度较Filling accuracy(%)	≤ ± 2.5
包装头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖合理率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
