妙用与间介/Brief Introduction：

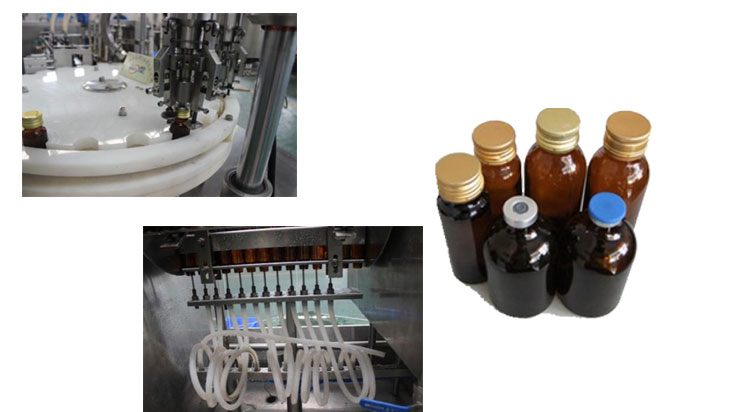

本的流水线适当30ML之内内服液的罐装的产量，由供瓶机、滚筒设施洗瓶机、蹭蹭蹭蹭式罐装轧（旋）盖机、开式贴标签签机等设施组合而成，可全定时进行理瓶、洗瓶、罐装、上盖、旋（轧）盖、贴标签签等环节。主要是使用于生物制药、肉制品、化学工业的的几种液滴原辅料的罐装一体化的产量。本的流水线完成按照GMP标准要求。This production line is suitable for more than 30 ml of oral liquid filling production, by for bottle filling machine, roller bottle washing machine, straight-line rolling (spin) cover machine, vertical labeling machine and other equipment, can finish automatically unscramble bottle, bottle washing, filling and cover, cover and label (pad). Mainly used in pharmaceutical, food, chemical industry production of all kinds of liquid filling material of the linkage of. This production line in full compliance with GMP requirements.

特质 /Characteristic：

◆表皮木头材质为304不锈钢装饰管板，灌装生产线部分采316L不锈钢装饰管板，贴合GMP正确。Outer material is 304 stainless steel,and the material of filling part is 316L stainless steel, it complies with GMP regulation ◆可适于多样式加工。can be situable for several bottle specs.◆作业稳定性高，噪音分贝小，灌装生产线准确度 。Stable running,low noise,precise filling.◆破瓶率低，制成品合理率高，高耗能少。low bottle breakage ratio,high qualified product ratio,low energy consumption.◆整套种植线可单机手游抑制和連鎖抑制。The whole line can single machine control or interlock control.

系统产品参数/Main Technical Parameters：

可用规格参数Filling Volume	30-150ML
分装头数Productivity	减速4头            &✃nbsp; 极速8头 4 at low spee🎶d             high speed 8
研发工作能力	减速30-50瓶/分     高70-100瓶/分 30-50bottles/min  70-100bottles/min
罐装精密度Filling Precision	≤±1%
旋盖率Capping Rate	≥99%
开关电源Power Supply	220V/50Hz
工作效率Power Supply	2.5kw
工作线总长Dimension	7500*1000*1700MM
