功用与简单介绍/ Brief Introduction：

本工作线由全会自动理瓶机、滚简式洗瓶机、清洁粗糙机、眼药剂包装旋盖机、双面标贴纸签汽轮机成，可搞定理瓶、水、气的擦洗、真空干燥及嗅氧清洁、包装、加塞、旋盖、标贴纸签等道工序，重点用做眼药剂以及其他小含量悬浊液的联线工作，也可单人独立性动用。基本复合GMP必须。This production line consist of  Automatic Bottle Unscrambler,  Bottle Washing Machine, Tunnel Type Sterilization Drier, eyedrop filling machine, Vertical Labeling machine, can complete bottle sorting, water,and gas cleaning, drying and ozone disinfection, filling, plugging, capping, labeling, mainly used in eyedrops and other small doses of solution, also can be used single independently.　 Meet the GMP requirement.

基本特征/Characteristic：

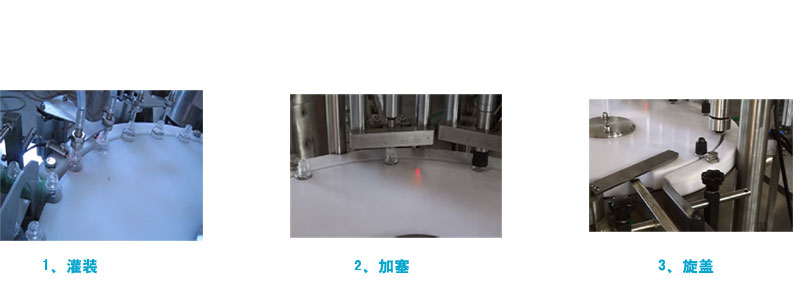

远程服务器组设计设备构造合适，执行安全、装灌高精更高，具中国同行公司业比较好的质量。完全性符合规范GMP规范。     眼药液装灌旋盖机已至我我司的其3代品牌，人与机器接面管理，收缩泵装灌，由真空环境吸机戒手代用液压缸更佳的打塞，确定了不稳定义性和达标率率。选用恒扭距旋盖，都具有无瓶不装灌、无塞不上盖，无瓶无塞可自然停电的基本功能。    It with reasonable structure, higher precision in filling, reaching the advanced level in domestic same business. Meet with requirement of GMP standard completely.eyedrop filling capping machine is a third generation product, human-machine interface operation, filling by peristaltic pump, replace air cylinder with vacuum drived manipulator for plugging, aquire higherstability and percent of pass. Constant torquecap screwing. No bottle no filling, no plug no capping and automatically stop if cap and plug is under-supply.

技艺性能指标/technical parameters：

适用人群规格参数/Bottle size	10-20ml
种植作用/Capacity	40-60瓶/分  70-120瓶/分 40-60/  70-120 bottles/min
用自来水心理压力/ Hydraulic Pressure Mpa	0.3Mpa
使用水进行量 /water consumption	0.5 m3/h
美观缩小新鲜空气气压 /Clean compressed air pressure	0.6-0.8Mpa
清洁缩小气氛用药量/Clean compressed air consumption	300 L/min
电/Voltage	380V/50Hz
耗油率/Power	5.5 kw
生育线总长/Dimension	11000*1500*1900mm
