妙用与百科/Purpose and introduction：

NQGF型西林瓶粉针洗烘包装轧盖标贴纸互通线 由QCL类别双面超音波波洗瓶机、AQMR铁路桥式自动空调嵌套循环往复灭菌方法方法烤箱、NQFGX类别车方机丝杆粉剂包装机、NQ-50轧盖机、NQWTB-120标贴纸发电机成，也可单人选择。适于于7-25ml尺寸的西林瓶粉针的生产的。能搞定自喷加水、超音波波粗洗、瓶侧壁水擦洗、瓶内部反复四次嵌套循环往复水擦洗、一回吹气、一回新鲜度水擦洗、反复四次吹气、瓶侧壁吹气、清洁工作、发动机预热、真空干燥灭菌方法方法去热原、蒸发、包装、加塞、轧盖、标贴纸等二十几道工艺流程。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

优势特点/characteristic：

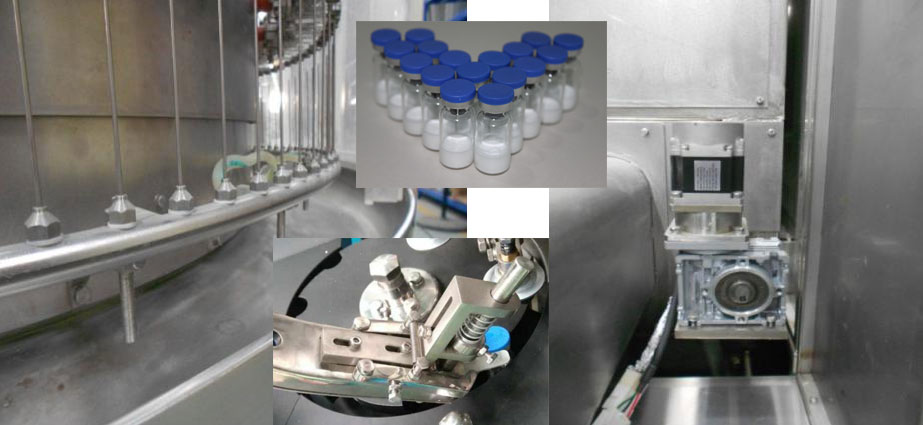

◆洗瓶机主要包括机制手夹瓶，不适用许多种尺寸规格的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶适用热气喷针导杆定位跟踪添加图片原则，洗涤疗效好，勤俭节约电力能源。并还拥有针架防抽动装制，提高了喷针添加图片玻璃瓶的精确性度，减低断针的问题的发生；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶所有雾水管线、喷针彻底孤立在一起，避免出现了交错式污染问题，贴合GMP规范标准符合要求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶挤出机丝杠前改装缓解块，有保护的挤出机丝杠，减小碎瓶用处；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选用整体结构进口的同歩带，相连拨瓶块输料西林瓶，进行稳固稳定；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烘干箱选用制热配置热处理加热，温均，发展节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆干燥箱要设防陡然关电呵护功能性。行驶人身安全；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配不断循环散热传动装置，不衰减房子功率，可以减少房子的风压差不动平衡的隐患物理降温视觉效果要好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烤箱可配压差大大全自动平稳设定系统性下降屋里和烤箱的压差大大不平稳引发的高热段偏移量，分装间洗烘间室内温度升高级全方位的的困难；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆烘干箱设在DOP论文查重插孔(收录静压、风速等级、尘土再生颗粒论文查重口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆干燥箱水冷却段可带在线视频消毒的功能(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆烘干箱网带可带mri爆发CIP免费在线清洁系统软件；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烤箱内腔室可对其进行全方向、多多方位进行高压水清洁；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机用于国际级更专业的设计的概念的核心理念，更具极运行速度，甚至分瓶明确，换成样式件便利；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机所采用洽谈步进驱动包器交流电动机驱动包分开包装螺丝杆旋转视频，装量精准；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆分开包装机用装量的修改一直在触摸式屏上实现目标；Mixer packer adopts the load adjustment directly on a touch screen;◆灌装机待选配百级循环法式层流罩；Mixer packer optional circulating laminar flow hood best level;◆全自动灌装机机无瓶停此全自动灌装机，无瓶没有塞功能性。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线分为PLC总抑制、变頻器、触屏式屏抑制能力，正常运作相对稳定能信的。触屏式屏可显现各单机版的正常运作睡眠情况，各抑制点的进水管、大气压力、风速、温等显现，各面板开关睡眠情况和故章显现，故章个人能力诊断报告和故章探讨及清除手段。使另一制作方式可达到智能化抑制，联线存在自我控制平横装备，提高制作动态平衡能信的。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.依照大家的必须要 ，还可供选择装配：According to the needs of customers, but also available for selection:◆西门子设备、施耐德开关、三凌、台达等牌子设定设备；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气重压、水温表及高周波波承载力、污物粒子束、风力网上测试、报警灯、登记、直接打印体统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、无菌检测分隔器软件。ORABS, CRABS, aseptic isolator system.

技术工艺基本参数：/technical parameters

型號 model

生产加工力production capacity

洗瓶合格品率Washing bottle percent of pass

洗瓶破损掉镀率Washing bottle breakage

杀菌体温sterilizing temperature

分开包装不确定度The repackaging of error

加塞合格品率Gasser percent of pass

空气中层流清洁度Laminar air cleanliness

机械泵抽速Vacuum pumping speed

电容器量 capacitance

电源开关power supply

总剩余电量Total transmission energy

样貌的尺寸boundary dimension

7-25ML标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
